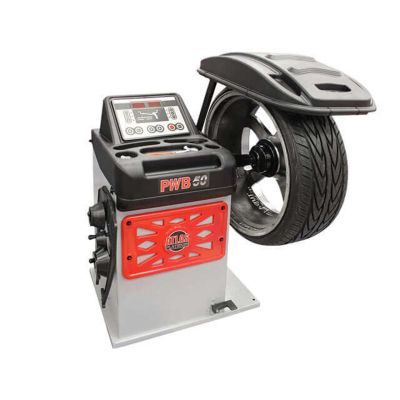

Atlas Platinum PWB50 Premium 2D Computer Wheel Balancer
$ 3,299
The Atlas® Platinum PWB50 is a high-performance, Italian-engineered 2D computer wheel balancer designed for speed, precision, and convenience. Built for high-volume shops, the PWB50 combines intelligent automation with durable construction, offering automatic 2D data entry, self-calibration, and a user-friendly LED display. With advanced features like the Fast & Easy Split (FES) function, Opposite Weight Function (OWF), and OPTIMATCH software, it simplifies complex balancing tasks, including hiding adhesive weights behind spokes or optimizing tire and rim unbalance.
This premium wheel balancer supports up to 165 lb wheels and handles rim sizes from 10" to 30". The machine's NWN (No Wheel Needed) system allows for precise calibration without a mounted wheel, reducing downtime. Operators can choose from multiple ALU programs, including ALU-S, for accurate placement of stick-on weights. With a quick 7-second cycle time and auto start/stop functionality, the Atlas® Platinum PWB50 is an ideal solution for busy shops seeking efficiency and long-term reliability backed by Atlas' factory-direct value and a 2-year parts warranty.
Product Features
| Platinum Computer Controlled Motorized Spin Balancer |
| Italian Engineering and Components |
| Automatic and Pedal Operated Brake |
| Auto Start/Stop with Hood |
| Static and Dynamic Balancing Modes |
| Optimatch, FES (Split), OPF (Opposite Position) Functions |
| ALU-S and Multiple ALU Programs |
| Automatic 2D Data Entry |
| NWN (No Wheel Needed) System |
| Self-Diagnosing and Self-Calibrating |
| USB Hub for Firmware Updates |

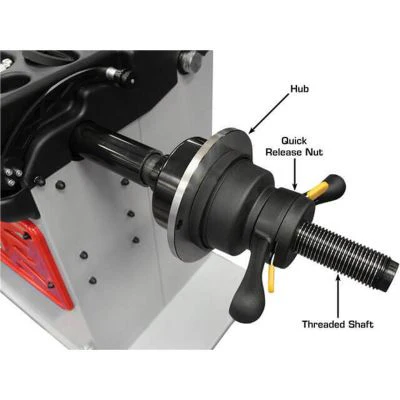

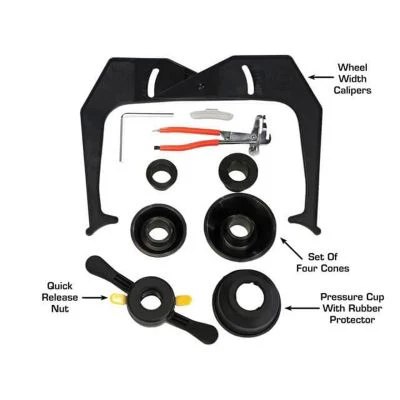

| Includes Cones, Quick-Release Nut, Pliers, & Calipers |
| No Anchor-Down Installation Required |
| 2-Year Parts Only Warranty |
 |  |
Product Specifications
| Max Tire Diameter | 43" |
| Rim Sizes (Cars & Light Trucks) | 10" - 30" |
| Rim Width | 1 1/2" - 20" |

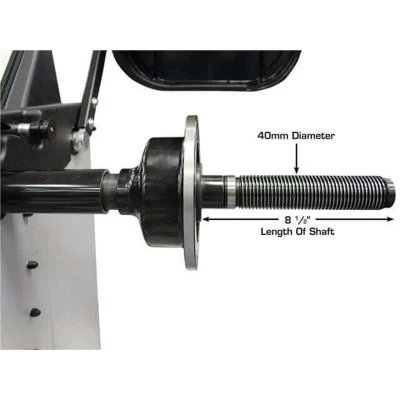

| Shaft Size | 40mm |
| Max Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Cycle Time | 7 seconds |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibrating | Yes |
| Electric Requirement | 110 Volt |

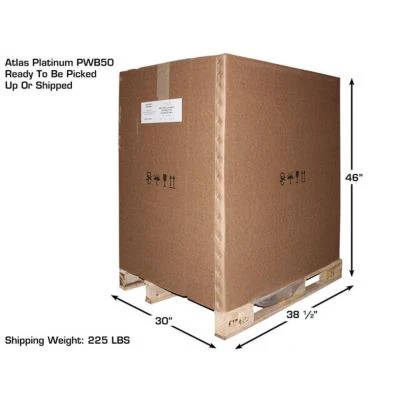

| Shipping Weight | 230 lbs. |
