Atlas 9KBPX 9,000 lb Baseplate 2 Post Vehicle Lift

Atlas 9KBPX 9,000 lb Baseplate 2 Post Vehicle Lift

$ 1,993

$ 2,699

40%


Atlas 9000 lb Baseplate 2 Vechicle Post Lift

The Atlas® 9KBPX is an economically designed baseplate 2 post vehicle lift great for low ceiling garages. The total column height of 111 ½” (9′ 3 ½”) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9′ 6″. The Atlas® 9KBPX “chain over roller” lift features a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV’s, and light duty trucks (not recommended to lift Diesel Dually or other large trucks)

ProDuct Features

  • 9,000 lb. Capacity

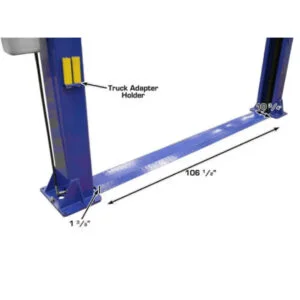

  • Baseplate, Open-Top Style Lift
  • Designed For Low Ceiling Clearance – 9′ 3 ½” Columns

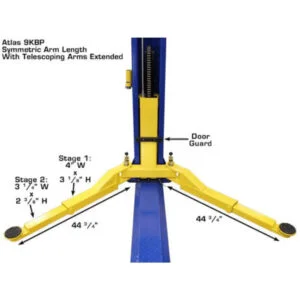

  • Symmetric Arms
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System (SLS)

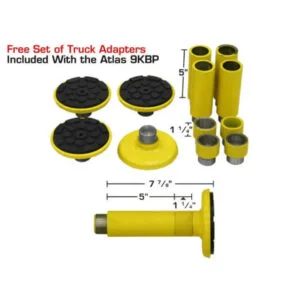

  • Free 8 Piece Truck Adapter Set

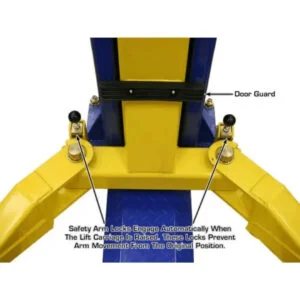

  • Automatic Arm Restraints

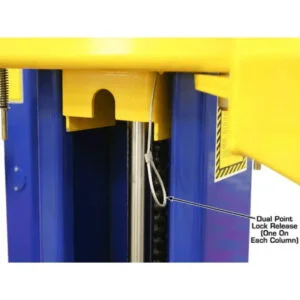

  • Dual Point Lock Release
  • Mounting Hardware Included
  • Shipping Weight: 1,400 lbs.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only


Product Specifications

ModelXH-9KBPX
Capacity9,000 lbs.

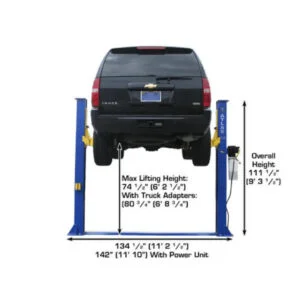

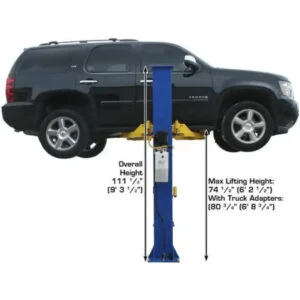

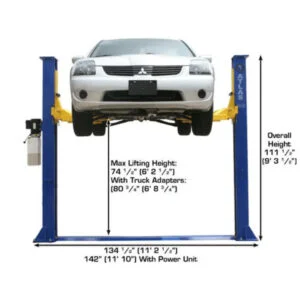

Overall Height111 1/2″ (9’ 3 1/2″)

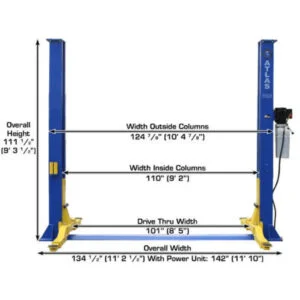

Overall Floor Width134 1/2″ (11’ 2 1/2″)
Outside Column to Outside Column124 7/8″ (10’ 4 7/8″)

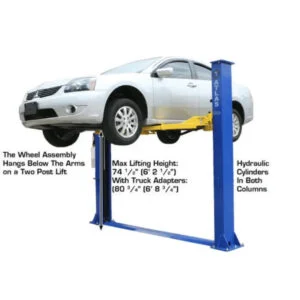

Max Lift Height (No Adapters)74 1/2″
Max Lift Height (With Adapters)81″
Minimum Arm Height4″
Inside Column110” (9’ 2”)
Drive Thru101” (8’ 5”)
Column Size7 1/4″ x 11″
Steel Thickness5mm

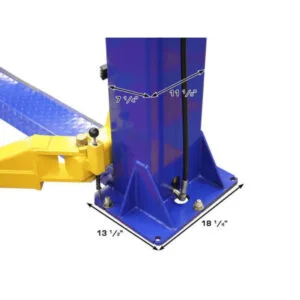

Base Size14 1/4″ x 18 1/4″

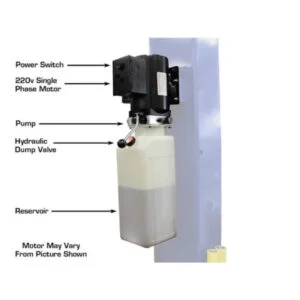

Electrical220V single phase (30 amp breaker)
Oil Requirement3-5 Gal AW32/AW46 (NOT INCLUDED)

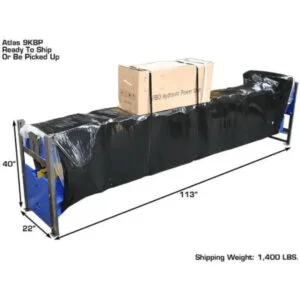

Shipping Weight1,400 lbs.

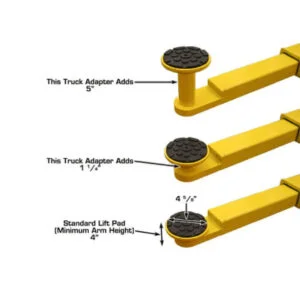

Adapter Heights4 Each: 1.5”, 5”
Arm Hole / Peg Size1.5”
Concrete Requirement4″ @ 3000 psi
